Wheel Care Equipments

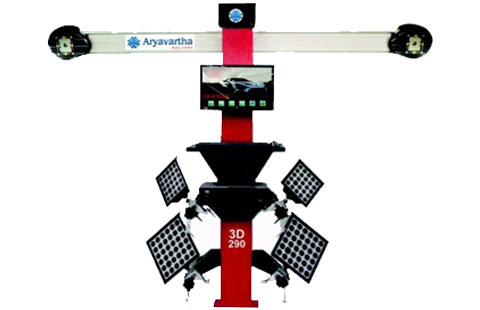

3D Alignment
Model : IA-3D-290
Aryavartha 3D wheel aligner is stable, accurate, low cost, and easy-to-maintain 2 camera system wheel aligner. Specially designed
for clients who need to expand their business with high performance equipment requirement. This product has outstanding & Unique feature and the most advanced technology to ensure the growth of your garage.
Waterproof targets, 24 inch wheel clamps, Set up the reading under 2 minutes, Non electronic wheel sensor target, Easy to operate
interface, Long life hi-speed camera system, life-time free vehicle database update

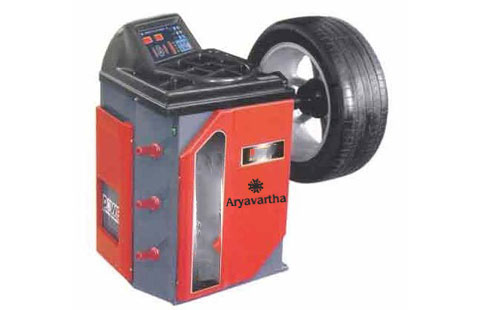

Digital Wheel Balancer
Product Description
With the support of our competent team of experts, we are betrothed in offering clients superior quality Digital Wheel Balancer that is used for wheel balancing in automobile. Manufactured using excellent grade components and modern techniques, this balancer is precisely designed under the strict guidance of our skilled professionals. Offered Digital Wheel Balancer is sternly monitored on various level of manufacturing to eliminate any kind of defect before delivering it to our clients.
Features:
• Smooth finish
• Sturdy design
• Light weight
• Optimum strength

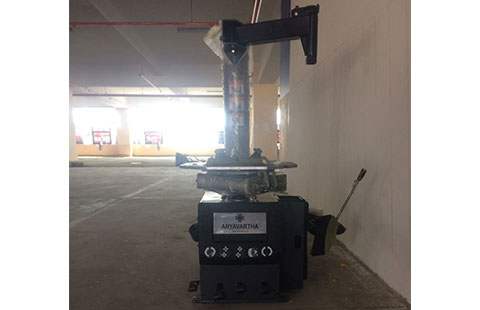

Automatic Tyre Changer
Product Description
Our organization is affianced in providing optimum quality Automatic Tyre Changer that is widely appreciated for its smooth functioning of tyre changing in automobile. The offered product is made by inculcating advanced technology and premium grade components under the direction of our team of experts. Offered Automatic Tyre Changer is made available in different designs, shapes and sizes as per the specific demands of clients. Customers can avail the offered changer from us at affordable rates.
Features:
• Robust design
• Smooth finish
• Light weight
• Rust resistance

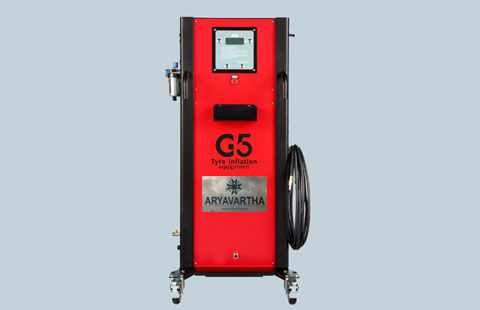

N2
Specifications
1. Generates nitrogen from your compressed air
2. 2 Pre-Filters
3. 50L/13.2gal (us) internal nitrogen storage tank
4. Auto-start inflation
5. Automatic zero drift adjustment
6. Remain at last setting
7. Audible and visual end of the cycle signal indicators
8. Self-diagnostic features
9. Vandal resistant mechanical switches
10. Large backlight LCD display
11. 1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck
12. Comprehensive diagnostics and error reporting
13. Nitrogen purge and fill cycle (N2P)
14. Nitrogen purity test por t
15. Adjustable over pressure setting (OPS)
16. Adjustable number of cycles
17. Adjustable lower purge pressure limit
18. Auto shut-Off
19. 1Nos Nitrogen Outlet to connect the unit and your tyre inflation gun
Features
| Dimensions (Height*Width*Depth) | 1315mm*720mm*620mm , 51.8"*28.3"*24.4" |
| Net Weight | 97kg/213.8lbs" |
| Gross Weight | 119kg/262.4lbs |
| Packing Size (Height*Width*Depth) | 1450mm*730mm*670mm , 57.1"*28.7"*26.4" |
| Power Requirement | 100-240Vac 50/60HZ |
| Power Consumption | 28VA |
| Compressed Air Input Range | 87 - 123PSI/6-8.5bar/600-850kPa |
| Compressed Air Input Flow | 250L/min (8.0cfm) |
| Nitrogen Purity | 95-99+% |
| Nitrogen Output | 42L/min (1.5cfm)@ 116PSI/8bar/800kPa Absorption pressure |
| Operating Range | 5-90PSI/0.3-6.2bar/35-620kPa |
| Over Pressure Setting Range | 0-29PSI/0-2.0bar/0-200kPa |
| Nitrogen Purges | 0-9 |
| Resolution | 1PSI/0.1bar/5kPa |
| Units of Measurement | PSI/bar/kPa |
| Maximum Nitrogen Pressure in Tank | 102PSI/7bar/700kPa |
Operation Steps
1. Set final target pressure using the + and - buttons. the LCD screen will show the target pressure.
2. Connect air hose to tyre valve stem.
3. FOR TOP-OFF ONLY : Push the " FILL/PURGE" button once.
FOR NITROGEN CONVERSION : Push and hold the "FILL/PURGE"
button for 2 seconds until the LCD screen shows "N2P".
4. When unit "beeps" and the LCD screen flashes the target pressure, yre inflation is complete
